AndroRAT Android Malware Analysis

Overview

Androrat is a remote administration tool developed in Java Android for the client side and in Java/Swing for the Server. The name Androrat is a mix of Android and RAT (Remote Access Tool). It has been developed in a team of 4 for a university project. The goal of the application is to give the control of the android system remotely and retrieve informations from it.

SAMPLE - c5ab0adaedf391a395387df33b0bf6854f1ccc9c5da937915ea86b5eec6e6103

Static Analysis

After extracting zip I directly jumped for analysis and while examining decompiled apk, I saw that malware isn’t obfuscated which made work easy. So, I started my analysis from AndroidManifest.xml because its where permissions are declared and there i saw some permissions like READ/WRITE_EXTERNAL_STORAGE, READ_SMS, RECORD_AUDIO, READ_CALL_LOG, ACCESS_FINE_LOCATION and one major thing that caught my attention was permission for CAMERA and certain other like jobScheduler and a code 1337 something SECRET_CODE that the malware listens.

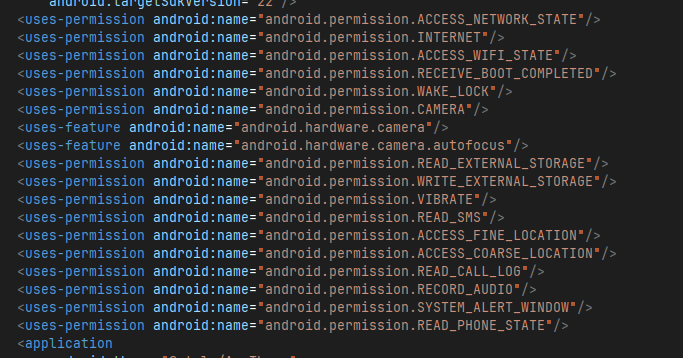

Figure 1: Dangerous Permissions

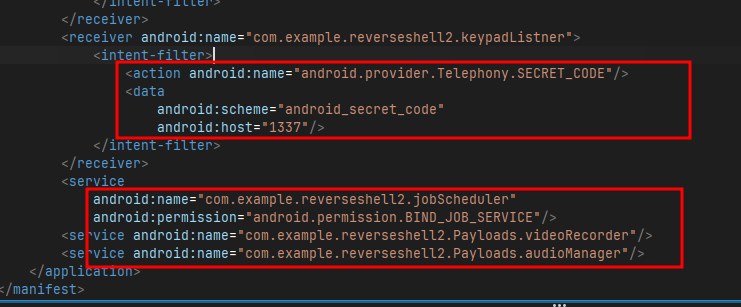

Figure 2: SECRET_CODE and Job Scheduling

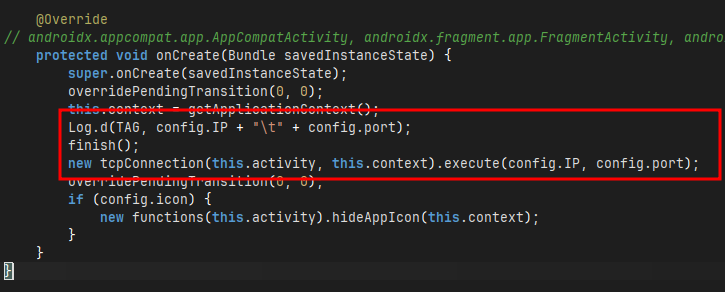

Figure 3: Creates a TCP connection to C2 server

In the config of the apk there is initilization of IP and PORT like 192.169.x.x and 8000 now coming to MainActivity it makes a TCP connection to the C2 server when onCreate is executed.

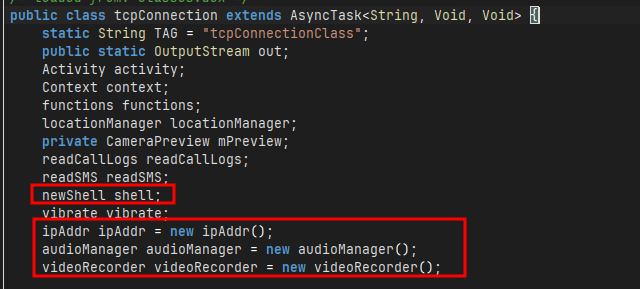

Figure 4: Initilize shell, audio/video manager

Tracing the tcpConnection it shows how this malware works, there are initilization of shell, IPAddr, audioManager, videoRecorder, so on lets analyze them one by one. First, ipAddr it has two functions getMACAddress which return a MAC address and getIPAdress which return a IP, we will see it in upcoming code.

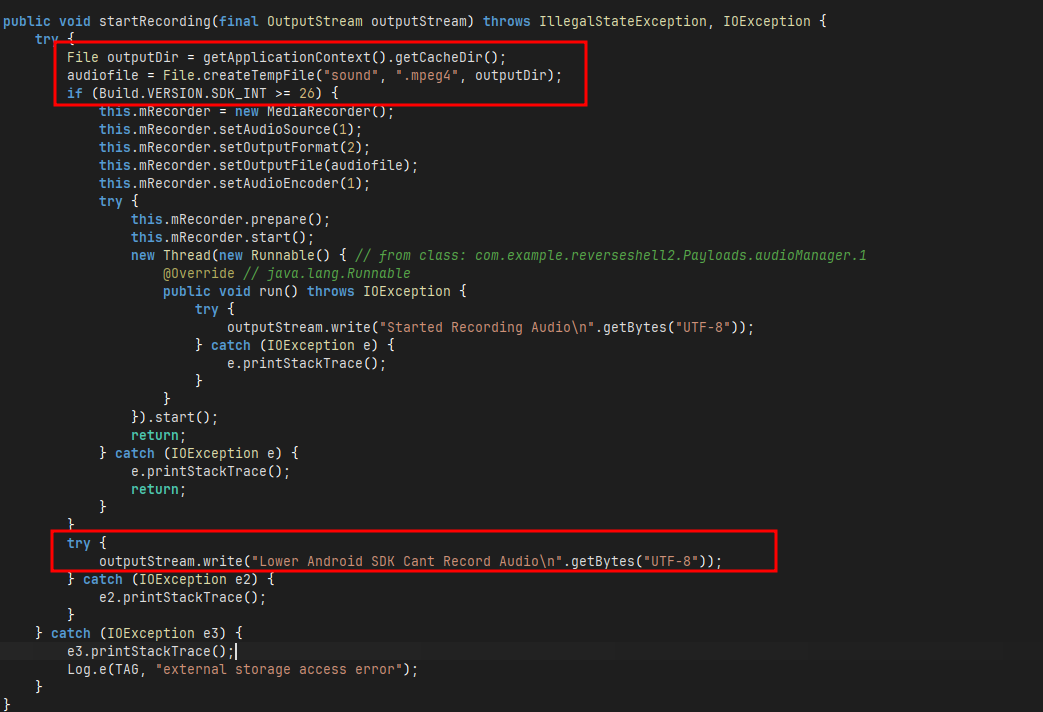

Figure 5: Recording audio and storing in cache dir

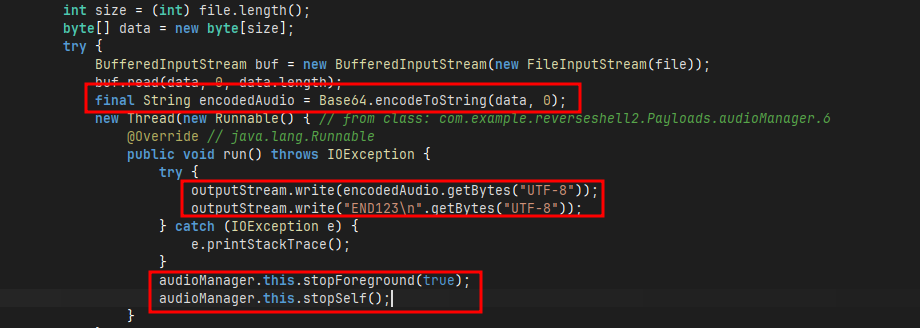

Figure 6: Encodes audio in base64 and attach END123 marker

Now, in audioManager there are function responsible for recording audio and saving it. One of the function startRecording which records audio only if the BUILD.VERSION is greater than or equal 26 otherwise Lower Android SDK Cant Record Audio and it records audio in .mpeg4 format and stores in cache directory. When stopRecording is called it converts the audio data into base64 for transmission and write END123 at end of it, it act as marker that server look for and once transmission is completed it stops audioManager. videoRecorder utlizes similar approach to record video in .mp4 and rest is similar.

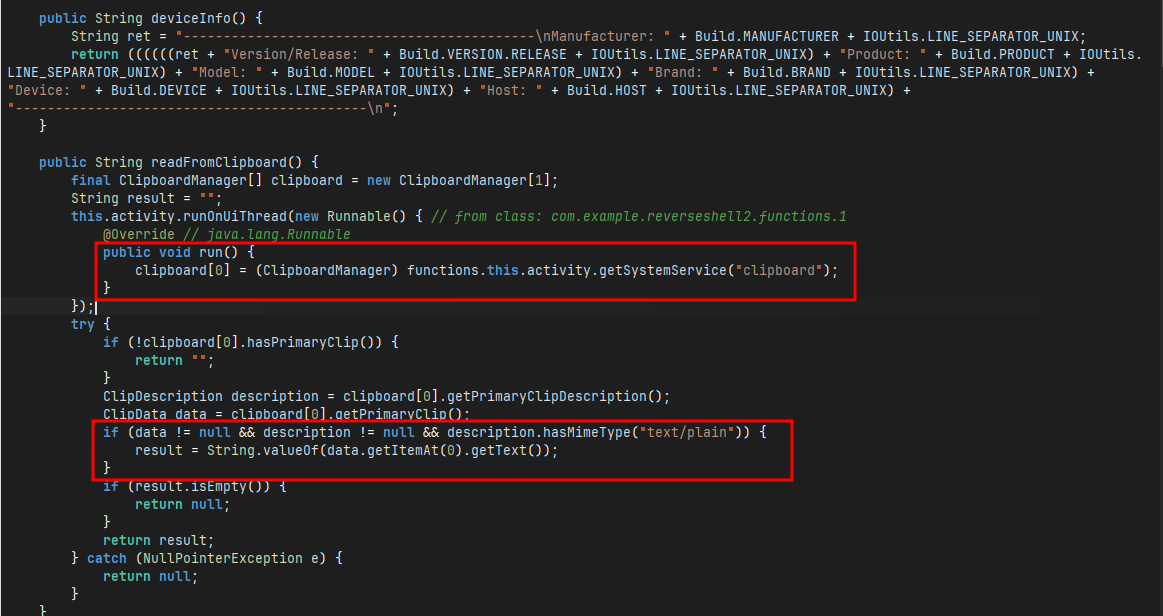

Figure 7: Extracts critical infomartions

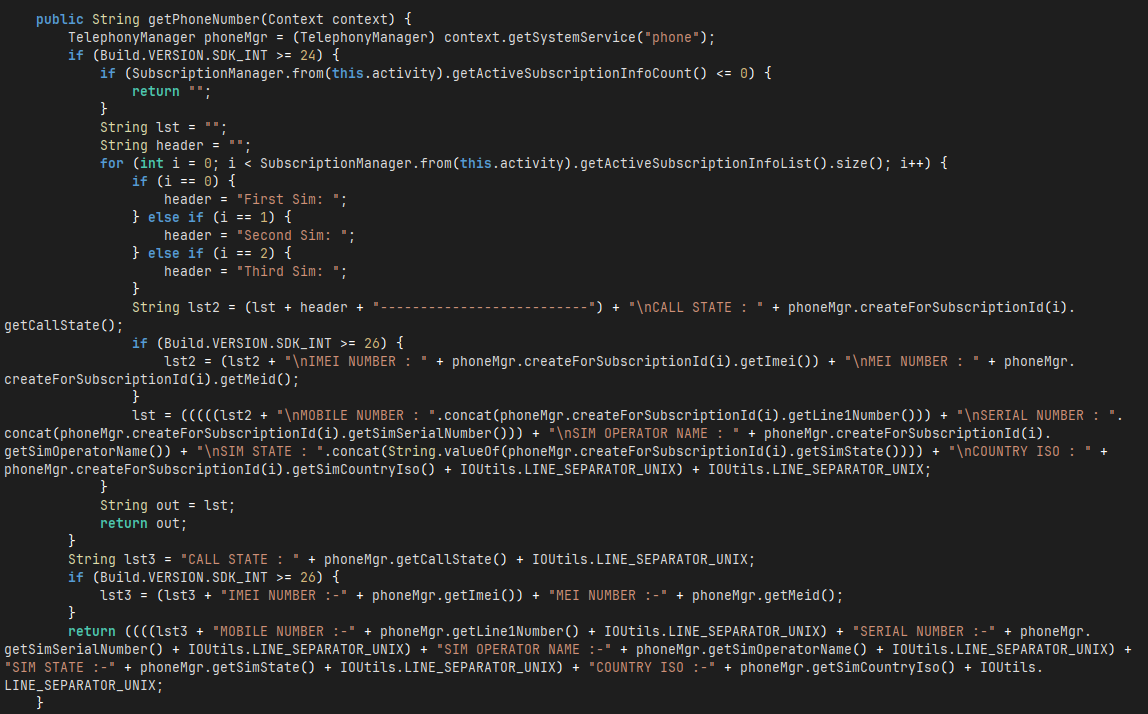

Figure 8: Extracts phone number

Now there is a function functions which extracts all the information about the phone including Model, IMEI, Phone Number of each sim, Brand, Manufacturer, so on also there is a function readFromClipboard which reads the content of clipboard of user that might get to info like passowrds, OTP. A jobScheduler function to schedule the malware to start automatically.

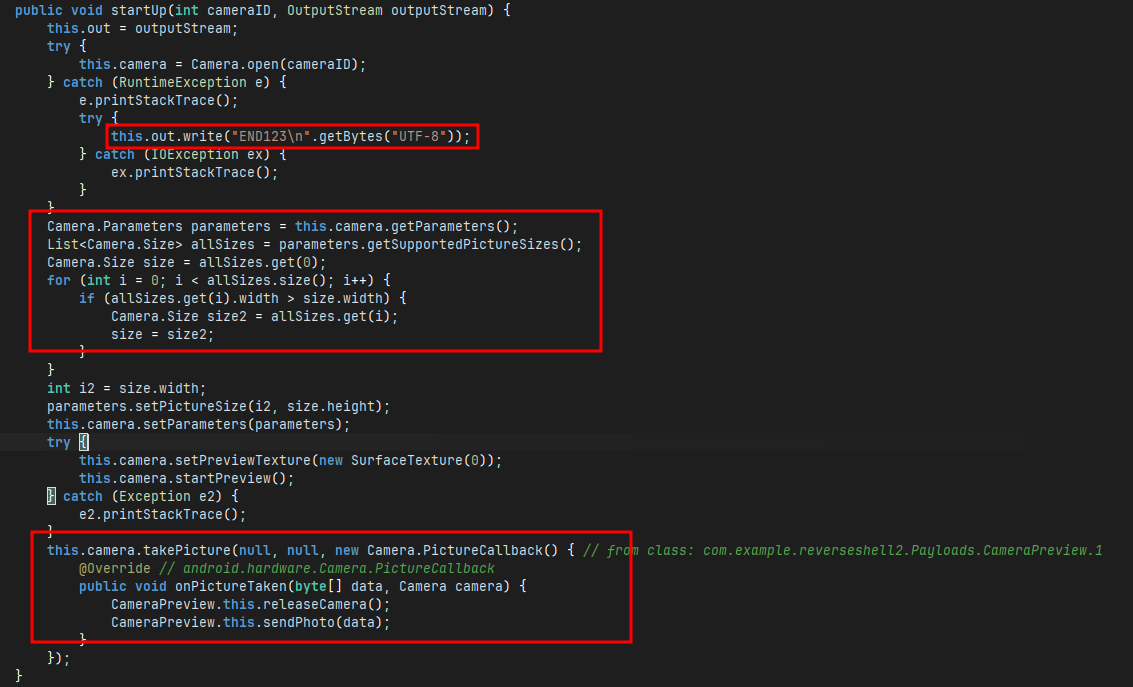

Figure 9: Clicks photo using phone’s camera

Afterwards, there is cameraPreview function which click photo and sends to server using same encoding on jpeg image and attaching END123 marker to it.

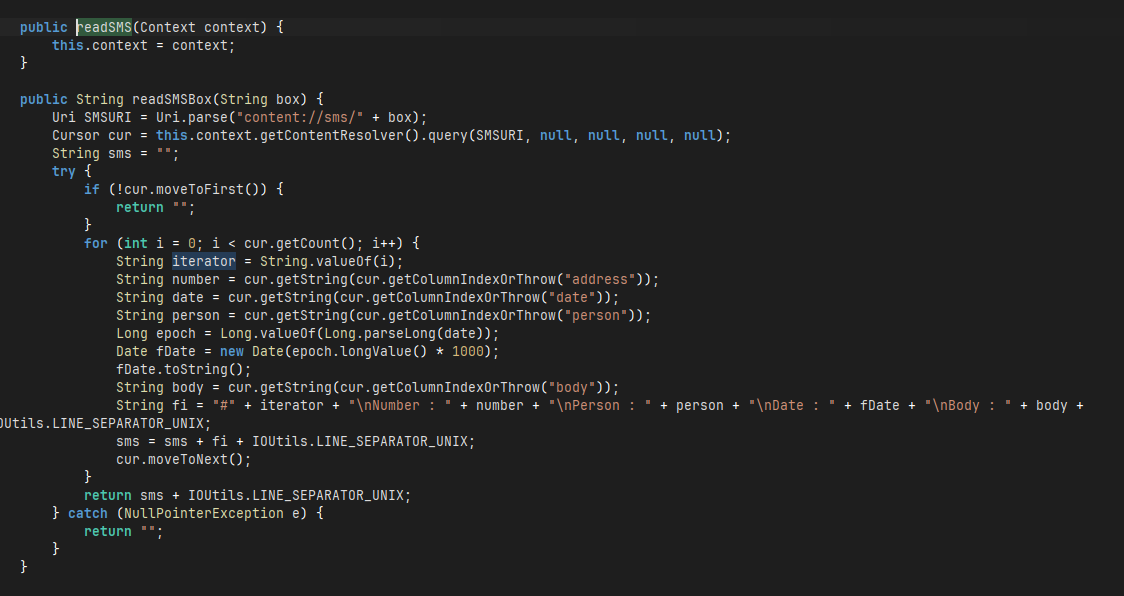

Figure 10: Reads messages

Now readSMS reads all the messages from Android system SMS databse including Bank OTP, and other confidential information. And with locationManager it points out the exact latitude and logitude of user using gps and netowrk location. Using readCallLogs it reads all the call history of the user including whom user talked to, duration of call, date of it and phone number of other user by reading content://call_log/calls system call log database.

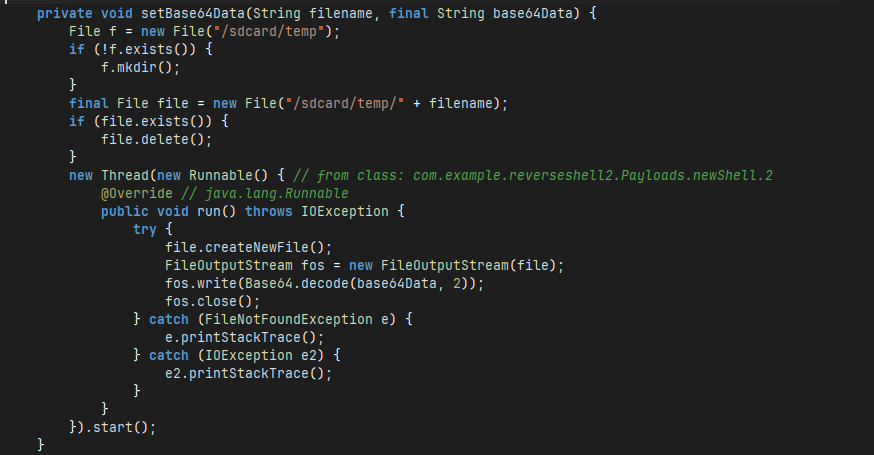

Figure 11: Sends encoded data to C2 server

Now newShell is responsible for sending all the encoded data including messages, clipboard, call_logs from /sdcard/temp to the C2 server. Coming back to tcpConnection there is a function doInBackground which keeps the connection between server and victim and in in case phone got disconncted from newtork, it won’t stop it will keep trying indefinitely unless gets the connection back. When the server gots the connection it will show a message to server Hello there, welcome to reverse shell of XXXX with model specific.

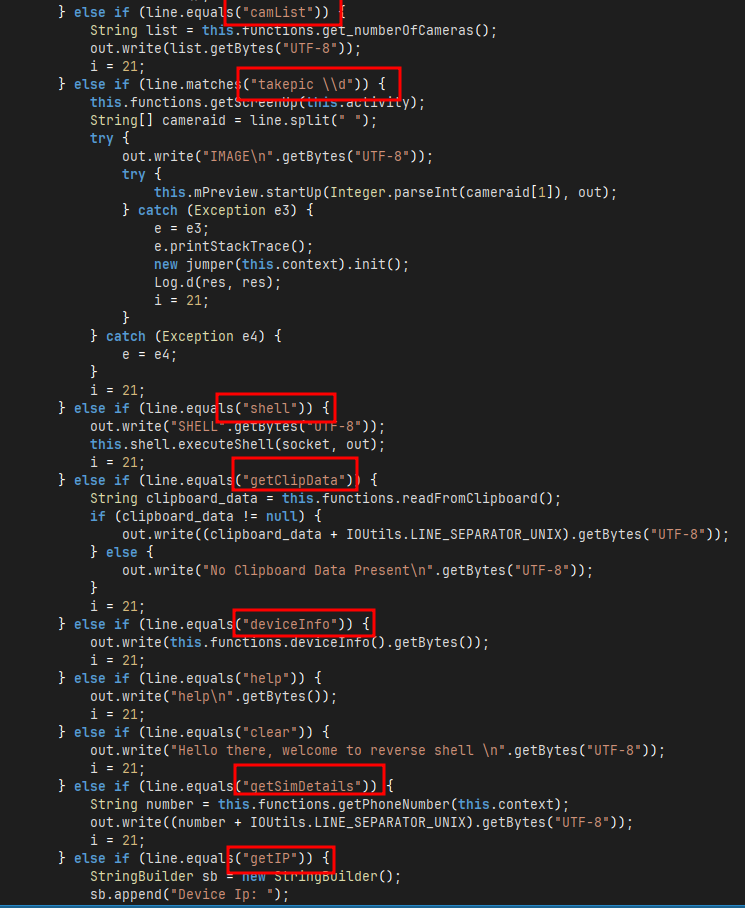

Figure 12: Commands attacker can send to victim

Then a infinite loop starts which will keeps asking of inputs but exits when a null is provided, it has commands such as camList, takepic \\d, shell, getClipData, deviceInfo, getIP, getSimDetails, getSMS, vibrate, getLocation, start/stop audio/video, getCallLogs which will provided each confidential information to the attacker and the most critical command was shell through which the attacker can even get a shell to victim’s device.

Dynamic Analysis

For dynamic analysis, since the ip which was given is a private dummy ip so I changed that IP to my laptop’s IP so that i can test it. I have rebuild and signed the apk again with my configuration for testing. After i installed and open app in my spare phone i got a call back from my device.

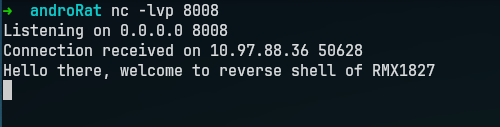

Figure 13: Call back from android device

Also tried the above found commands and everything is working as it was intended.

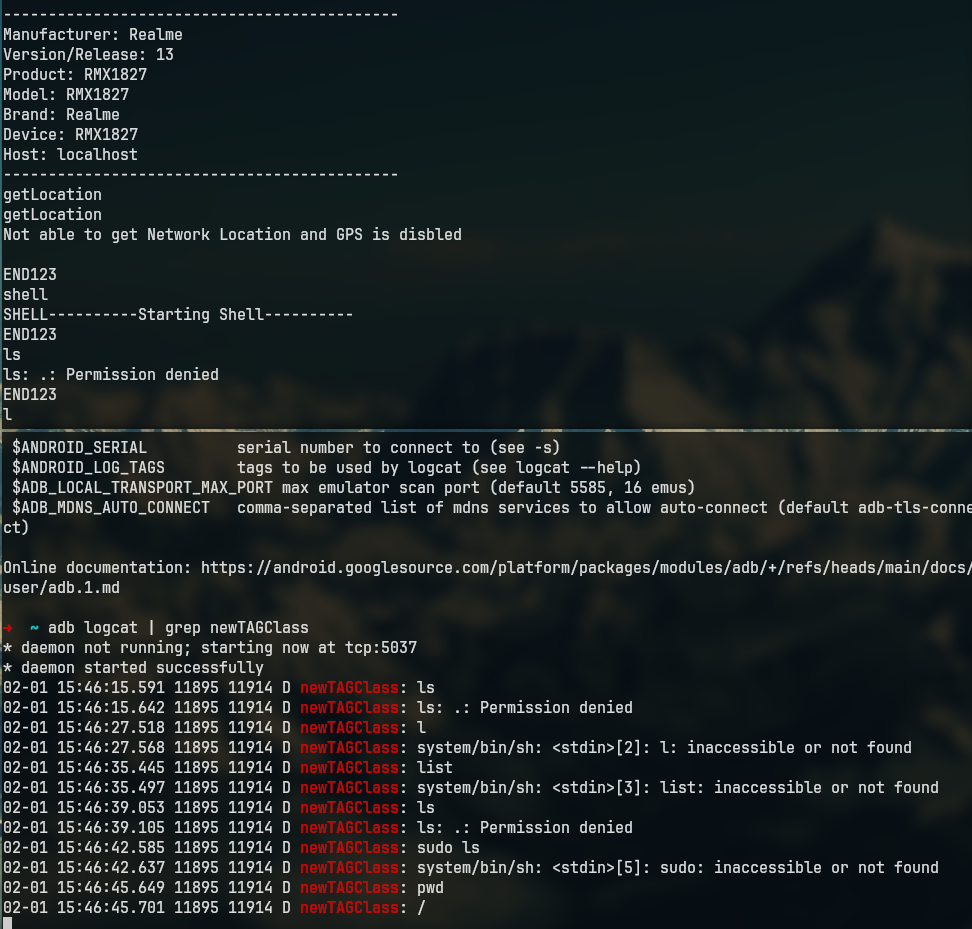

Figure 14: Working commands

IOCs

• IP - 192.168.x.x
• PORT - 8000
• C2 COMMANDS - getLocation, deviceInfo, shell, camList, getClipData
